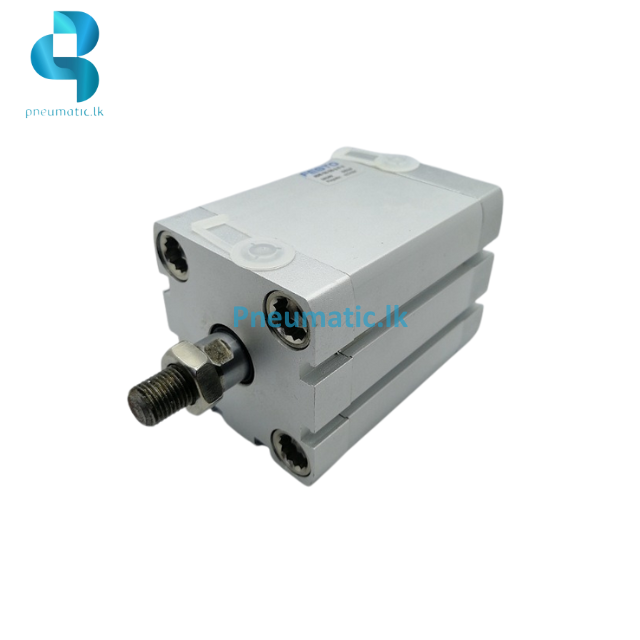

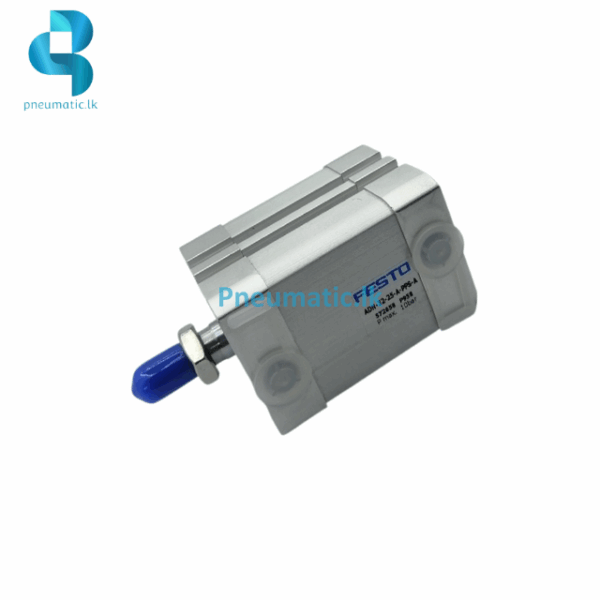

FESTO Model | ADN32-25-A-PPS-A | Air Cylinder

FESTO Model | ADN32-25-A-PPS-A | Air Cylinder Cylinder Type: Compact, Double-Acting Piston Diameter: 32 mm Stroke Length: 25 mm Piston Rod Thread: M10x1.25 (external thread) Port Size: G1/8 Standard Compliance: ISO 21287 Operating Pressure: 0.15 to 1 MPa (1.5 to 10 bar) Temperature Range: -20 °C to 80 °C Cushioning: PPS – self-adjusting pneumatic cushioning Corrosion Resistance Class: CRC 2 (moderate corrosion stress) Mounting Options: Horizontal or vertical; compatible with foot, swivel, or combined mounting accessories Magnetic Piston: Yes, for contactless position sensing with proximity sensors Cylinder Barrel Material: Smooth anodized aluminum Piston Rod Material: High-alloy steel Cover Material: Anodized aluminum If the requested quantity is available with us the product will be delivered within 3 working days if not product can be backordered and delivered within 3 to 4 weeks.
