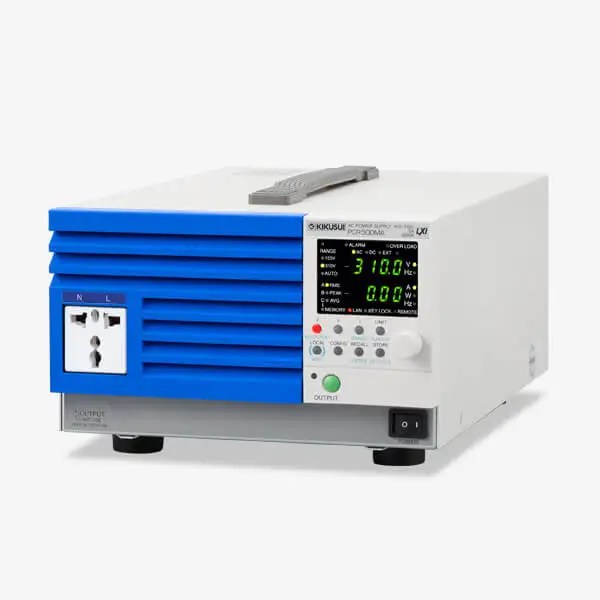

Kikusui PCR500MA AC Power Supply

Description Kikusui PCR500MA Compact AC Power Supply – Frequency Converter. This AC power supply is a refined version of the PCR-M series. While maintaining the compactness of the PCR-M series, the output voltage range has been expanded, and additional functions such as a LAN interface and sensing have been added. As with the previous product, there are four models depending on the output capacity: 500 VA. Features : Output Capacity: 500 VA Compact Design AC Output: 0 to 155 V / 0 to 310 V at 40 to 500 Hz DC Output: /- 0 to 219 V / /- 0 to 438 V Selectable Output Modes Store up to 3 sets of Output Voltage, Frequency, and Limit Value Setting via Front Panel Versatile Measurement Capability including Voltage, Current, and Power of AC and DC Output Maximum Peak Current 3 times the Rated RMS LAN and USB Standard Digital Interface (GPIB Optional) Sensing Function Kikusui PCR500MA Specifications : Output Rating AC Mode PCR500MA Rated voltage range (output 155 V/310 V range) 0 V to 155 V/0 V to 310 V Settable voltage range (output 155 V/310 V range) 0 V to 157.5 V/0 V to 315.0 V Voltage setting resolution 0.1 V Voltage setting accuracy ±(1 % of set 0.6 V/1.2 V) Number of output phases Single phase Maximum current 5A / 2.5A Maximum peak current 15A / 7.5A Load power factor 0 to 1 (leading or lagging) Power capacity 500VA Frequency setting range 40.0 Hz to 500.0 Hz Frequency setting resolution 0.1 Hz Frequency setting accuracy ≤ ±2 × 10 Output Rating DC Mode Rated voltage range (output 155 V/310 V range) -219 V to 219 V/-438 V to 438 V Settable voltage range (output 155 V/310 V range) -222.5 V to 222.5V/-445.0 V to 445.0 V Voltage setting resolution 0.1 V Voltage setting accuracy ±(1 % of set 0.6 V/1.2 V) Maximum current (output 155 V/310 V range) 4A / 2A Maximum instantaneous current (output 155 V/ 310 V range) 12A / 6A Power capacity 400W Output Voltage Stability Line regulation ≤ ±0.15 % Load variation (output 155 V/310 V range) 40 Hz to 100 Hz, DC : ≤ ±0.15V/±0.3V Other than above : ≤ ±0.5 V/±1 V Output frequency variation ≤ ±1 % Ripple noise 0.8 Vrms/1.6 Vrms (TYP) Ambient temperature variation 100 ppm/°C (TYP) Output voltage waveform distortion ratio ≤ 0.5 % Output voltage response speed 150 μs (TYP) Efficiency ≥ 70 % Kikusui PCR500MA User Manual and Spec Datasheet PDF : https://kikusui-korea.co.kr/files/PDF/PCR_MA_M.pdf Warranty 1 Year : https://www.jpnpartsale.com/refund_returns/
